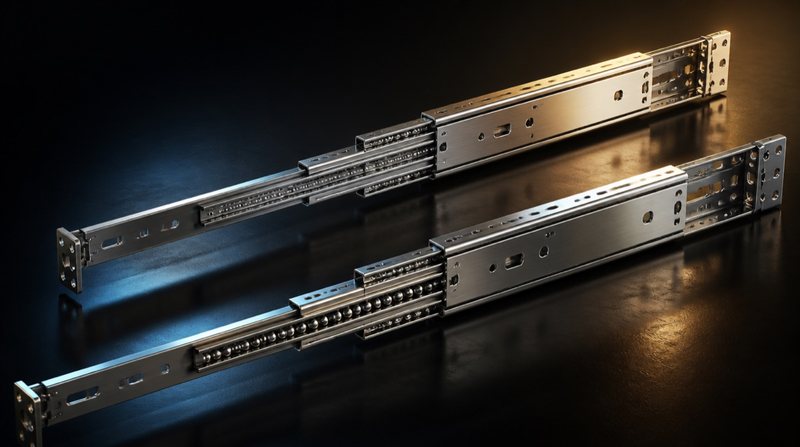

How to Choose Server Rack Rails for Heavy GPU Nodes

Q: How much load should GPU server rails support?

A fully populated liquid-cooled 4U–8U GPU node can exceed 45 kg, so plan for rail sets rated 150–250 kg static load with a safety factor. Always confirm whether the rating is per pair or per slide before comparing, because the difference roughly doubles the number you are reading.

Q: Is load rating per pair or per slide?

It depends on the manufacturer. Some rate the full set (per pair), others rate a single slide at full extension. A 91 kg per-slide rating and a 91 kg per-pair rating describe very different products, so normalise the basis before you compare or quote.

Q: What travel length do liquid-cooled nodes need?

Look for 900–1,200 mm full or over-travel so a technician can slide the chassis clear of manifold brackets and coolant quick-disconnects for hot-swap service without draining the loop. Over-travel beyond full extension gives the extra reach that liquid nodes often require.

Q: Do I need a cable management arm?

For serviceable dense nodes, usually yes. A matched CMA lets one operator slide a node out without unplugging cables, turning a two-person job into one. Confirm the CMA matches the rail's travel and the chassis U height.

Q: Which rail brands suit AI GPU servers?

King Slide and Nan Juen (Repon) lead the AI-server tier with thin tool-less kits, quoted RFQ by program. Accuride and General Devices offer semi-public catalog heavy-duty slides, and China OEMs provide a low-cost floor. Match the tier to load, serviceability and volume.

Rails are the load-bearing, serviceability layer of a GPU rack, and choosing them comes down to four specs in order: load rating (and its basis), travel length, mounting method, and cable management. Get the load basis wrong and you either overspend or overload the slide; get travel wrong and technicians cannot service a liquid-cooled node without draining the loop. A fully populated liquid-cooled 4U–8U GPU tray — an 8-GPU DGX-class node with coolant quick-disconnects — can exceed 45 kg, so plan for rail sets rated 150–250 kg static with 900–1,200 mm of full or over-travel. The single most common mistake is comparing a per-slide rating against a per-pair rating, which can make one product look twice as strong as it is. This guide walks the decision in order, then maps the vendor tiers — King Slide and Nan Juen (Repon) at the AI-server top, Accuride and General Devices in the semi-public catalog middle, and China OEMs as the cost floor — so you can spec rails that hold the weight and slide out cleanly for service. Figures are indicative and as of 2026-08.

Step 1: Load rating — and confirm the basis

Load rating is where quotes go wrong. Manufacturers rate load per pair or per slide, at full extension, with a defined safety factor — and they do not all use the same basis. A slide listed at 91 kg might mean 91 kg for the pair or 91 kg for each of two slides. Before comparing two products, normalise: ask whether the figure is per pair or per slide, and at what extension.

For heavy GPU nodes, target 150–250 kg static per set. Remember that AI positions often use 4–6 rail sets per rack position — primary load slides plus a CMA plus rear support brackets — so the per-position hardware count is higher than a single-server build.

Step 2: Travel length and over-travel

Travel decides serviceability. Full extension slides the chassis until its rear clears the rails; over-travel adds reach beyond that. Liquid-cooled nodes need the chassis to clear manifold brackets and coolant quick-disconnects so a technician can hot-swap without draining the loop — which is why 900–1,200 mm travel is the working range for dense GPU trays. A short 2-section rail that suits a shallow 1U appliance will not give a deep 6U node the reach it needs.

Step 3: Mounting, glide and lock-out

Three mechanical features separate a one-operator slide-out from a two-person chore:

Tool-less mounting — snap-in brackets for square or round holes, so install and removal need no fasteners.
Ball-bearing glide — smooth full-extension motion under load, versus cheaper friction slides.
Multi-position lock-out — holds the chassis extended for service and prevents accidental roll-back.

Ball-bearing, tool-less, UL-tested kits are the norm at the AI-server tier; friction and solid-bearing slides still appear in lighter or industrial builds.

Step 4: Cable management arm (CMA)

For serviceable dense nodes, a matched CMA is usually worth it. It routes cables to follow the slide so one operator can pull a node out without unplugging — the difference between a single-operator service call and a two-person, cable-tracing one. Confirm the CMA matches both the rail’s travel and the chassis U height. Browse rail-and-CMA pairings on our rails & slides page.

Vendor tiers at a glance

Tier	Representative vendors	Load basis (typical)	Channel & pricing	Best for
AI-server specialist	King Slide, Nan Juen (Repon)	Thin tool-less kits, custom travel; ~45–68 kg slides and up	RFQ / project volume, specs public but not prices	GPU/CSP programs, liquid-cooled nodes
Semi-public catalog	Accuride (2507/2907WB/3507), General Devices Chassis Trak	~75–200 lb per slide; heavy models to ~421 kg/pair	Some distributor pricing (e.g. 3507 ~$174/pair)	4U–8U heavy nodes, ruggedized builds
China OEM/ODM	Kingstar, Toploong, Innovision, Macase	Generic 1U–4U, heavy-loading drawer slides	~$10–60/set low MOQ; ~$80–180/set heavy-duty + CMA + coating	Cost-floor volume, white-box builds

What this means for sourcing

The AI-server specialists — King Slide and Nan Juen/Repon — publish specs but quote RFQ per program, with custom travel, side-space and finish; they are the choice where weight and serviceability are non-negotiable. Accuride and General Devices are semi-public: an Accuride 3507 heavy-duty slide (91 kg, 4U–8U, over-travel, lock-out) lists around $174/pair, useful as a benchmark. China OEM/ODM kits set the cost floor at roughly $10–60/set at low MOQ, dropping toward $10–25/set at scale; heavy-duty 200 kg telescoping slides with a CMA and corrosion coating for liquid-cooled racks run about $80–180/set. Industry data cites a ~$46/set global average, but AI-server rail pricing is tightening upward on demand. When you spec through our rails & slides category, lead with load basis and travel, then match the tier to volume.

FAQ

How much load should GPU server rails support? A populated liquid-cooled 4U–8U node can exceed 45 kg, so plan for 150–250 kg static sets with a safety factor. Confirm whether the rating is per pair or per slide before comparing.

Is load rating per pair or per slide? It varies by manufacturer — some rate the full set, others a single slide at full extension. Normalise the basis before you compare or quote.

What travel length do liquid-cooled nodes need? Look for 900–1,200 mm full or over-travel so the chassis clears manifold brackets and coolant quick-disconnects for hot-swap service without draining the loop.

Do I need a cable management arm? For serviceable dense nodes, usually yes — a matched CMA lets one operator slide a node out without unplugging cables. Confirm it matches the rail’s travel and chassis U height.

Which rail brands suit AI GPU servers? King Slide and Nan Juen (Repon) lead the AI-server tier (RFQ); Accuride and General Devices offer semi-public heavy-duty catalog slides; China OEMs set the cost floor.

Bottom line

Choose rails by load rating and its basis first, then travel, mounting and CMA — and match the vendor tier to your weight, serviceability and volume. We broker heavy-duty rails and slides direct from Taiwan and China factories. See our rails & slides category and request a quote with your node weight, U height and travel requirement.
